Dynamic SVG
About Industrial Cold Stack

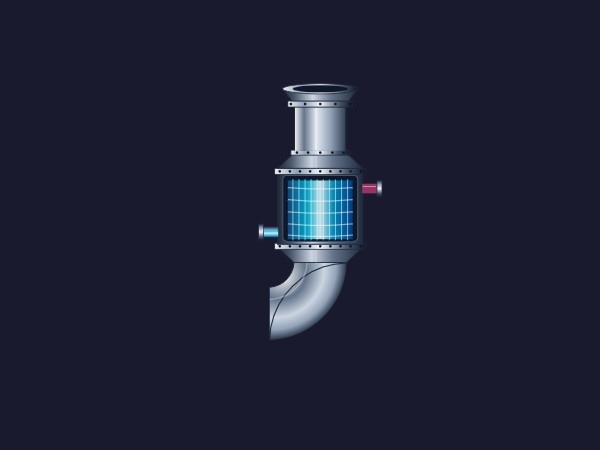

The Industrial Cold Stack is a high-fidelity Dynamic SVG graphic engineered for advanced SCADA and HMI environments. It depicts a heavy-duty 90-degree elbow chimney featuring a horizontally oriented intake that transitions into a vertical exhaust stack. A specialized integrated cold exchanger is mounted on the vertical section, providing a clear visual representation of thermal management processes in industrial facilities such as steel mills and chemical plants.
Key Features
- Modern Industrial Aesthetic: Features brushed stainless steel textures, realistic mechanical welds, and high-precision flange detailing.
- Dynamic Thermal Visualization: Integrated cooling core elements that react to process data for immediate operator recognition.
- Vector Precision: Fully scalable SVG architecture ensuring crisp visuals on any HMI panel resolution without pixelation.
- Seamless Integration: Designed specifically for modern SCADA platforms with native property binding.
Customization
This component offers 7 bindable properties for deep process integration. Engineers can control the BasicColor and ChimneyDuctColor to match facility standards. The CoolingActive property toggles the visibility of the cooling state, while CoolingLevel allows for dynamic scaling of cooling intensity. Thermal and fluid states are further refined using CoolingCoreColor, RefrigerantInletColor, and RefrigerantOutletColor to represent specific temperature zones and refrigerant flow status.
Use Cases
Ideal for monitoring cryogenic exhaust systems, chemical reactor cooling stacks, and large-scale industrial HVAC installations where thermal exchange monitoring is critical.
Compatibility
Works natively with WinCC Unified and WinCC V8. Simply import the .svghmi file into your project and bind the properties directly to your PLC tags for real-time operation.
⚠️ AI-Generated: This dynamic SVG was automatically generated using AI. Please test and validate its behavior within your specific HMI environment before deploying in production.
⚠️ AI-Generated: This dynamic svg was automatically generated using AI technology. It may contain errors or unexpected behavior. Users are responsible for testing and validating before using in production environments.
