Dynamic SVG
About Sinamics G120 CU250S

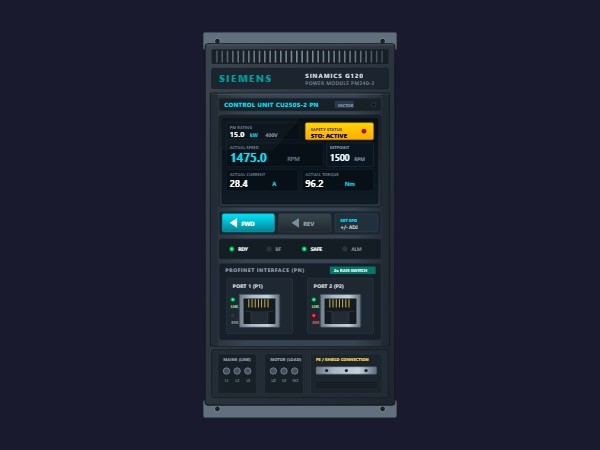

The Sinamics G120 CU250S is a high-fidelity Dynamic SVG designed for professional industrial SCADA and HMI environments. It provides a detailed, front-view representation of the modular Siemens Sinamics G120 drive equipped with the CU 250S-2 Control Unit. This component bridges the gap between technical documentation and operational visualization, offering a realistic digital twin that displays critical drive data and diagnostic states in real-time.
Key Features
- Integrated Digital Readout: High-contrast display area showing Current (A), Torque (Nm), Actual Speed (RPM), and the configured Speed Setpoint.
- Comprehensive Diagnostics: Real-time status for RDY and BF LEDs, along with dedicated PROFINET port monitoring (P1 and P2) and a high-visibility Safe Torque Off (STO) safety badge.
- Directional Control Feedback: Integrated FWD and REV motion indicators that modulate brightness to show active rotation direction.
- Power Module Specifications: Dedicated field for displaying the Power Module rating in kW, ensuring operators can identify drive capacity at a glance.
Customization
The SVG features 12 dynamic properties for deep integration. Engineers can bind LedReadyColor, LedBusFaultColor, and StoLedColor to diagnostic bits, while Port1LinkColor and Port1ErrorColor (along with Port 2 equivalents) handle network status. The FwdActiveColor and RevActiveColor properties provide clear visual confirmation of motor rotation, all manageable via standard PLC tags.
Use Cases
Perfect for motor control center (MCC) dashboards, detailed drive faceplates, and energy management systems where monitoring torque and current is critical for process stability.
Compatibility
Fully compatible with WinCC Unified and WinCC V8. The vector-based design ensures crisp rendering at any scale on industrial panels or control room monitors.
⚠️ AI-Generated: This dynamic SVG was automatically generated using AI. Please test and validate all property bindings and visual states before deploying in production environments.
⚠️ AI-Generated: This dynamic svg was automatically generated using AI technology. It may contain errors or unexpected behavior. Users are responsible for testing and validating before using in production environments.
## Current version: v1 (2026-10-09)0 Reviews
