About Tilted 5-Slot Drawer Tray

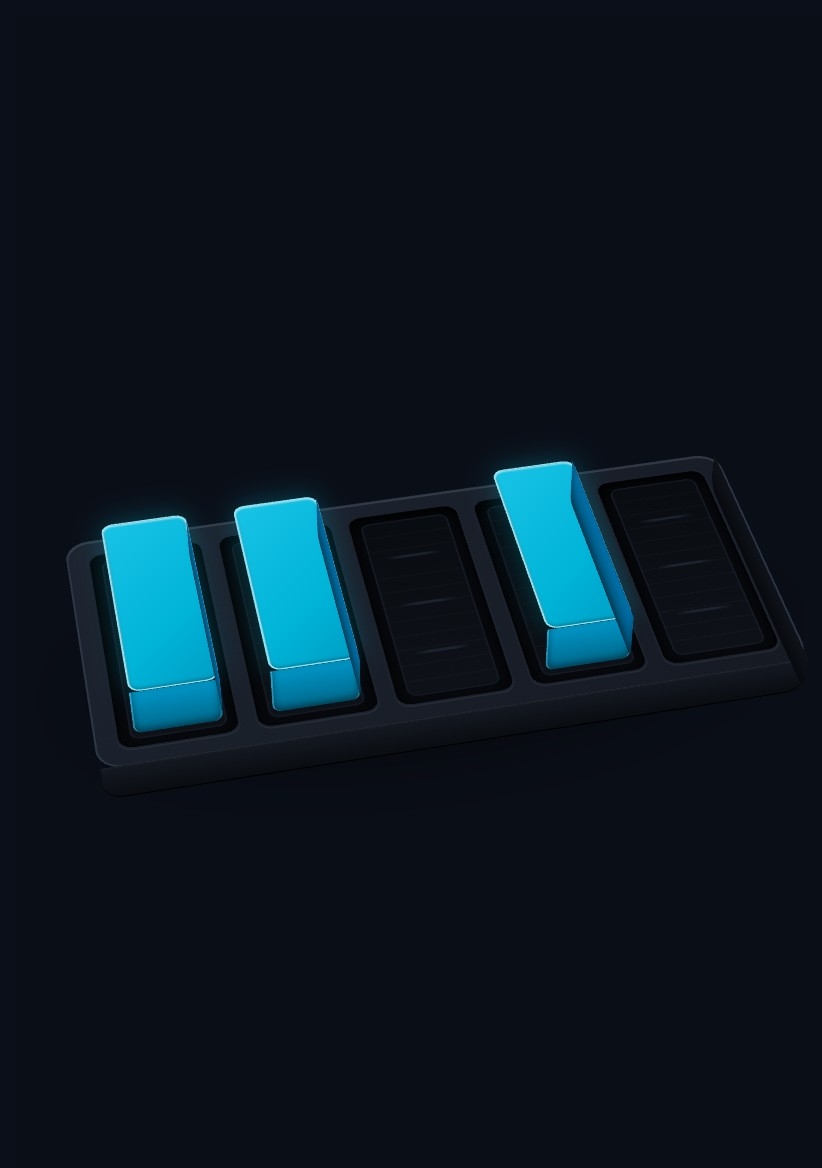

Tilted 5-Slot Drawer Tray is a Custom Web Control built for industrial SCADA and HMI applications. A 3D tilted carrier tray visualizing compartment occupancy across configurable slot rows and columns. Displays empty recessed pockets or loaded parts with multi-state color coding and animated transitions. Supports interactive slot selection with event emission for automated pick-and-place tracking. Simply import it into your WinCC Unified or WinCC V8 project and bind its properties to PLC tags — no web development required.
What You Can Configure
This control provides 24 configurable properties, 2 interactive events, and 2 callable methods. Operators can adjust colors to reflect operational states. All parameters are directly bindable to PLC tags for seamless real-time updates.
Compatibility
Works with WinCC Unified (TIA Portal) and WinCC V8. Includes full documentation (PDF & ODT) with installation instructions for both platforms.
💡 TIA Portal Reminder: Remember to uncheck the "Read only" option in TIA Portal when linking a tag to a property that needs to be written from the Custom Web Control. If you don't, the CWC will only be able to read the HMI tags and not write to them.
⚠️ AI-Generated: This control was automatically generated using AI. Please test and validate before deploying in production environments.
⚠️ AI-Generated: This custom web control was automatically generated using AI technology. It may contain errors or unexpected behavior. Users are responsible for testing and validating before using in production environments.
