Dynamic SVG
About Plate Heat Exchanger

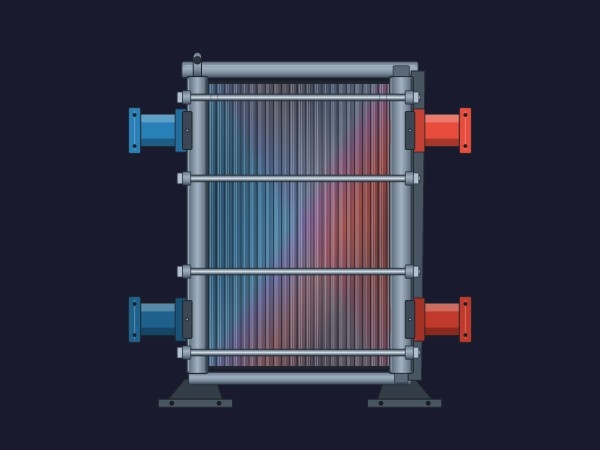

Plate Heat Exchanger is a Dynamic SVG graphic that depicts a plate-type heat exchanger for process mimics on WinCC Unified and WinCC V8 screens. It gives operators a clear schematic view of the equipment, so it fits naturally into process overviews and unit detail pages.
Key Features
- Clear equipment symbol: A recognisable plate heat exchanger drawn as scalable vector artwork that stays sharp at any panel resolution.
- Bindable base colour: The BasicColor property controls the base fill of the main element and can be linked to a PLC tag or a script-driven value.
- Lightweight graphic: A single SVG file with no external resources, so it loads quickly and runs fully offline.
Customization
The graphic exposes one property, BasicColor (HmiColor), which sets the base fill colour of the main element. Assign a fixed colour in the graphic designer or bind it to a tag to change the appearance dynamically. No coding is required.
Use Cases
Ideal for process flow diagrams, heating and cooling circuit overviews, utility plant screens, and operator panels where a heat exchanger must appear as part of the process mimic.
Compatibility
Works with WinCC Unified and WinCC V8. Add the .svghmi file to your project's graphics library, place it on any screen, and configure its properties in the engineering tool.
