About Plate Heat Exchanger

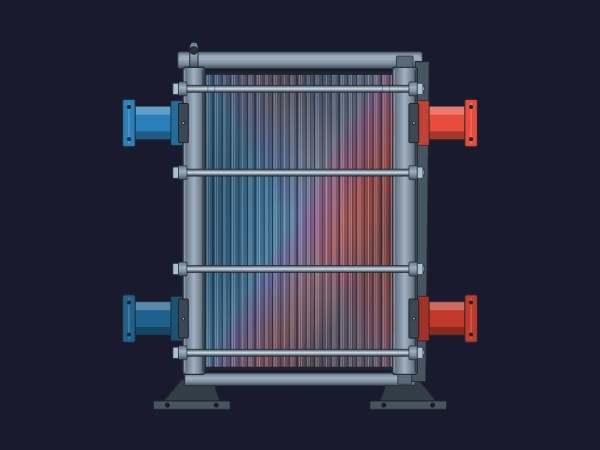

Plate Heat Exchanger is a Dynamic SVG that visualizes a plate heat exchanger with two separate media circuits in a single graphic. Import it into your WinCC Unified or WinCC V8 project and bind its color properties to PLC tags so the graphic reflects the live condition of each circuit.
Key Features
- Two-circuit visualization: Separate inlet and outlet pipes for Medium 1 and Medium 2 make the flow path readable at a glance.
- Tag-driven coloring: Each pipe is controlled by its own color property, so the medium on each connection can be shown directly from process data.
- Scalable vector graphic: The drawing stays sharp at any zoom level and fits any display size.
Customization
The control exposes five properties. BasicColor sets the base fill of the main heat exchanger body, while Medium1InletColor, Medium1OutletColor, Medium2InletColor and Medium2OutletColor control the fill of the corresponding pipe sections. All properties are bindable to PLC tags, so no scripting is required.
Use Cases
Ideal for process overview screens, heat recovery and cooling loop displays, and operator panels where the two media paths must be identified quickly.
Compatibility
Works with WinCC Unified and WinCC V8. Add the .svghmi file to your project, then configure the bindings in the graphic properties.
AI-Generated: This dynamic SVG was automatically generated using AI. Please test and validate it before deploying in production environments.
⚠️ AI-Generated: This dynamic svg was automatically generated using AI technology. It may contain errors or unexpected behavior. Users are responsible for testing and validating before using in production environments.
