Custom Web Control
About Circular Analog Gauge

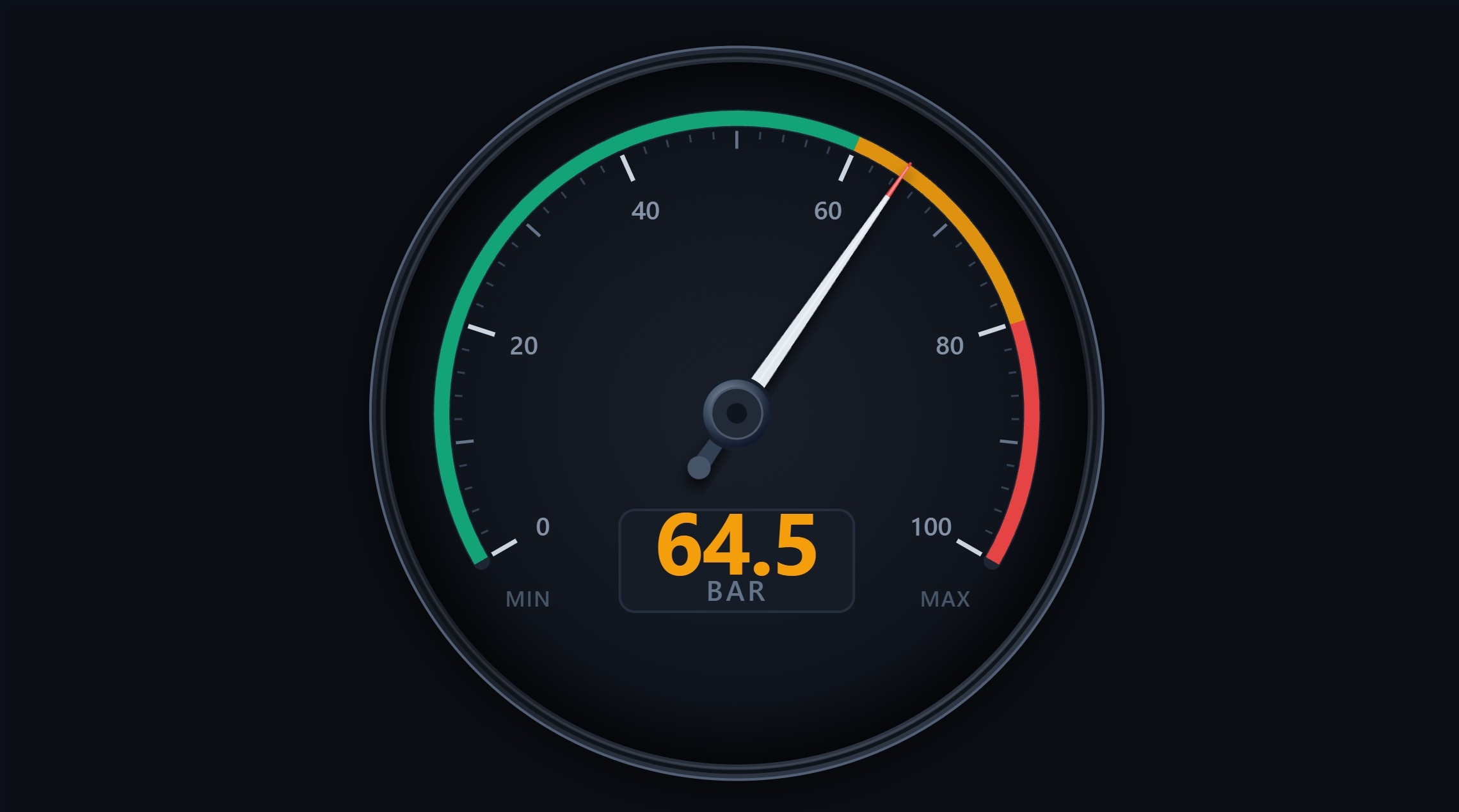

The Circular Analog Gauge is a high-performance Custom Web Control designed for modern industrial SCADA and HMI environments. It provides a sophisticated process monitoring interface featuring a rotating needle across a calibrated 240-degree scale, combining the intuitive readability of traditional instrumentation with the precision of digital readouts. Designed for seamless integration, it allows engineers to visualize critical process data within WinCC Unified and WinCC V8 environments with professional-grade aesthetics.
Key Features
- Dynamic Visualization: A smooth-motion needle tracks the value property in real-time, providing immediate visual feedback of process trends.
- Intelligent Alerting: Built-in logic triggers the ThresholdExceeded event when the process crosses defined boundaries, enabling proactive operator response.
- High-Contrast Readout: Features a tabular digital display with a customizable unit string for unambiguous data interpretation at a distance.
- Advanced Interactivity: Supports programmatic control via the setValue and resetLimits methods for automated dashboard behaviors.
Customization
The control offers 10 bindable properties for complete visual and functional alignment with your project standards. Engineers can define the operational range using minValue and maxValue, and configure safety boundaries via warnThreshold and alarmThreshold. The visual identity is fully adjustable through properties such as backgroundColor, safeZoneColor, warnZoneColor, and alarmZoneColor, ensuring the gauge fits perfectly into any dark or light mode industrial theme.
Use Cases
- Pressure & Flow Monitoring: Ideal for displaying pipeline pressure or flow rates where rapid detection of limit excursions is critical.
- Energy Management: Visualizing power loads and current consumption with clear warning and alarm zones.
- Machine Health: Monitoring motor RPM or temperature levels on local operator panels.
Compatibility
Fully compatible with WinCC Unified (TIA Portal) and WinCC V8. The control is optimized for high-resolution industrial displays and supports standard HMI tag binding for all dynamic properties.
💡 TIA Portal Reminder: Remember to uncheck the "Read only" option in TIA Portal when linking a tag to a property that needs to be written from the Custom Web Control. If you do not, the CWC will only be able to read the HMI tags and not write to them.
