Custom Web Control

About Inspection Log

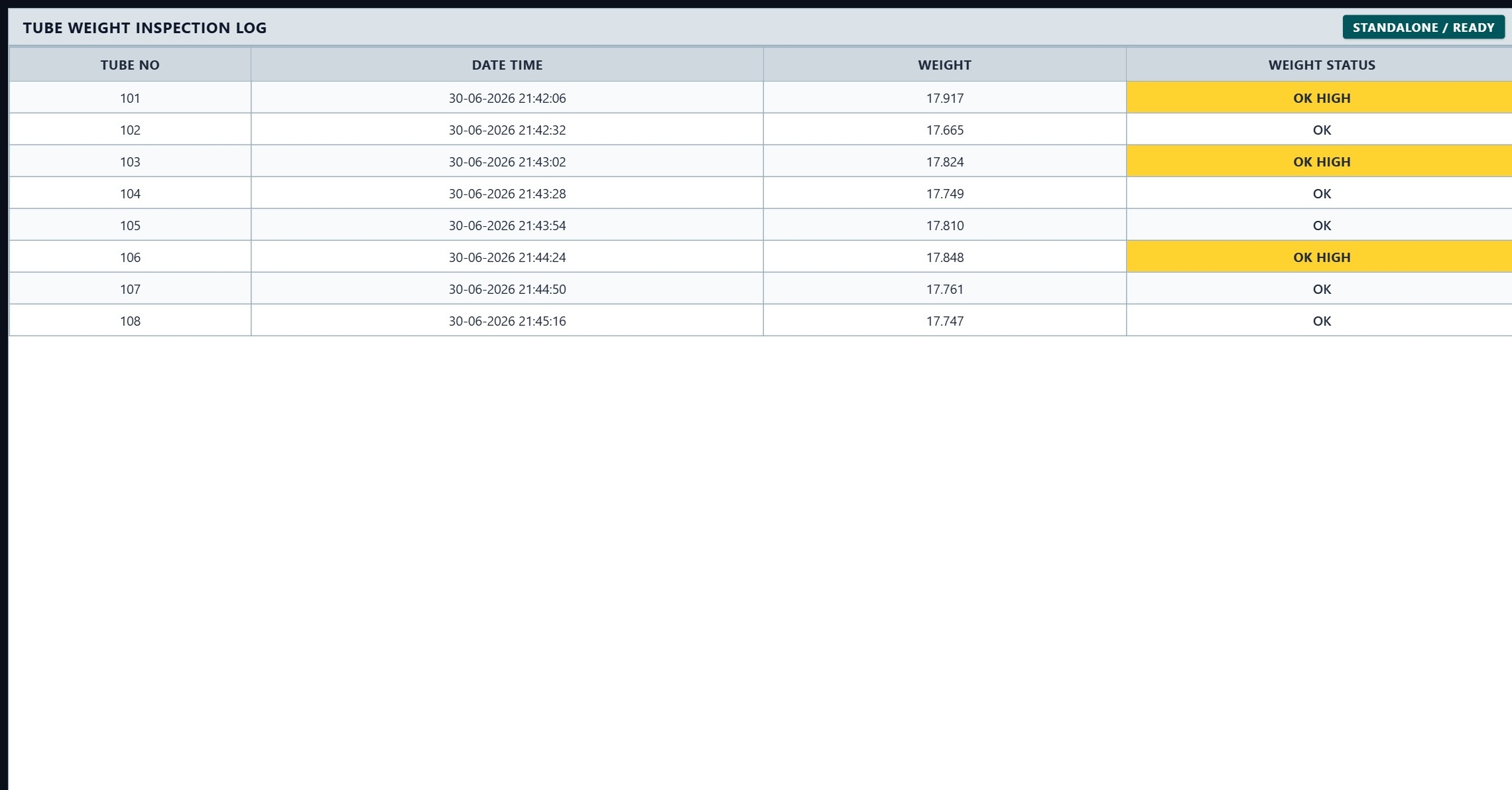

The Inspection Log is a high-performance Custom Web Control (CWC) engineered for industrial SCADA environments, specifically optimized for tube weight inspection workflows. It provides a high-density tabular view for monitoring production quality in real-time, allowing operators to track inspection records with precision and visual clarity. Designed for seamless integration, it bridges the gap between SQL databases and the HMI layer by handling dynamic data ingestion and user interaction events.

Key Features

  • Dynamic Data Handling: Ingests complex datasets via the recordsJson property, allowing for direct display of SQL query results within the WinCC environment.
  • Intelligent Row Management: Automatically maintains performance by limiting the view to a specific count defined by the maxDisplayedRows property.
  • Interactive Operations: Features a built-in RowSelected event for drill-down diagnostics and a RefreshRequested event to trigger manual or automated data polls.
  • Runtime Methods: Includes appendRecord for live streaming updates and clearRecords for session resets, providing full programmatic control to the HMI engineer.

Customization

The control offers extensive visual flexibility through 7 dedicated properties. Engineers can define the backgroundColor and headerColor to match corporate design standards, while the titleText and connectionStatusText ensure operators always have clear context. Critical quality deviations are highlighted using the highlightHighWeightColor property, which applies specific styling to rows exceeding weight thresholds.

Use Cases

This control is ideal for quality control stations in tube and pipe manufacturing, automated weighing scales, and batch reporting dashboards where historical inspection data must be cross-referenced with real-time production flow.

Compatibility

Fully compatible with WinCC Unified (TIA Portal) and WinCC V8. The control supports standard web technologies and is optimized for both PC-based stations and Unified Comfort Panels.

💡 TIA Portal Reminder: When binding tags to properties intended for bidirectional communication, ensure the "Read only" attribute is unchecked in the TIA Portal tag table to enable full write capabilities from the control.

⚠️ AI-Generated: This custom web control was automatically generated using AI. Please test and validate all logic and data bindings in a staging environment before deploying to a live production system.

⚠️ AI-Generated: This custom web control was automatically generated using AI technology. It may contain errors or unexpected behavior. Users are responsible for testing and validating before using in production environments.
