Line OEE Monitor | Custom Web Control | WinCC Unified & V8

Custom Web Control

About Line OEE Monitor

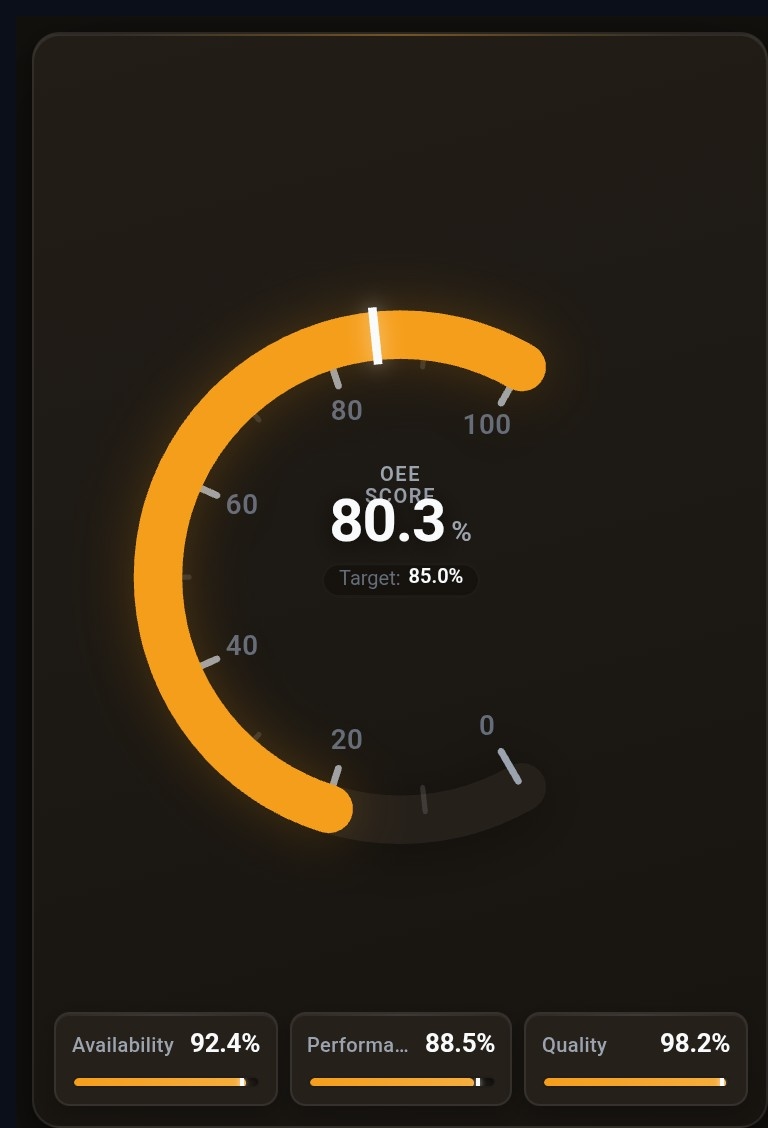

The Line OEE Monitor is a professional-grade Custom Web Control (CWC) designed for high-performance industrial SCADA and HMI environments. It provides a comprehensive visual summary of manufacturing efficiency by tracking Overall Equipment Effectiveness (OEE) alongside its three core pillars: Availability, Performance, and Quality. Built for modern control rooms, it features a fluid, animated SVG radial dial that offers immediate visual feedback on production health and target achievement.

Key Features

• Dynamic Visualization: Features a high-contrast radial gauge for OEE and dedicated progress bars for individual manufacturing factors.
• Automated Logic: Use the calculateOee property to automatically derive the overall score from live data or switch to manual input via overallOee.
• Intelligent Thresholds: Real-time color shifting using accentColor, warningColor, and alarmColor based on user-defined targets.
• Interactive Events: The FactorSelected event allows operators to drill down into specific metrics, while OeeTargetStatusChanged enables automated system responses when production dips below the targetOee.

Customization

Engineers have full control over the interface through 18 bindable properties. You can localize the display using scoreLabel, availabilityLabel, and qualityLabel. Performance thresholds are fully adjustable via properties like availabilityTarget and qualityTarget, ensuring the control aligns with specific production standards. The setFactors method allows for bulk updates of manufacturing data via script, while backgroundColor ensures seamless integration into any HMI theme.

Use Cases

Ideal for shop-floor overview screens, management KPI dashboards, and line-side operator panels where quick identification of production bottlenecks is critical for maintaining throughput.

Compatibility

Works with WinCC Unified (TIA Portal) and WinCC V8. Supports seamless tag binding and JavaScript scripting for dynamic industrial applications.

⚠️ AI-Generated: This custom web control was automatically generated using AI. Please test and validate its performance and logic before deploying in live production environments.

⚠️ AI-Generated: This custom web control was automatically generated using AI technology. It may contain errors or unexpected behavior. Users are responsible for testing and validating before using in production environments.

## Current version: v1 (2026-10-05)
