Custom Web Control
About OEE Waterfall Chart

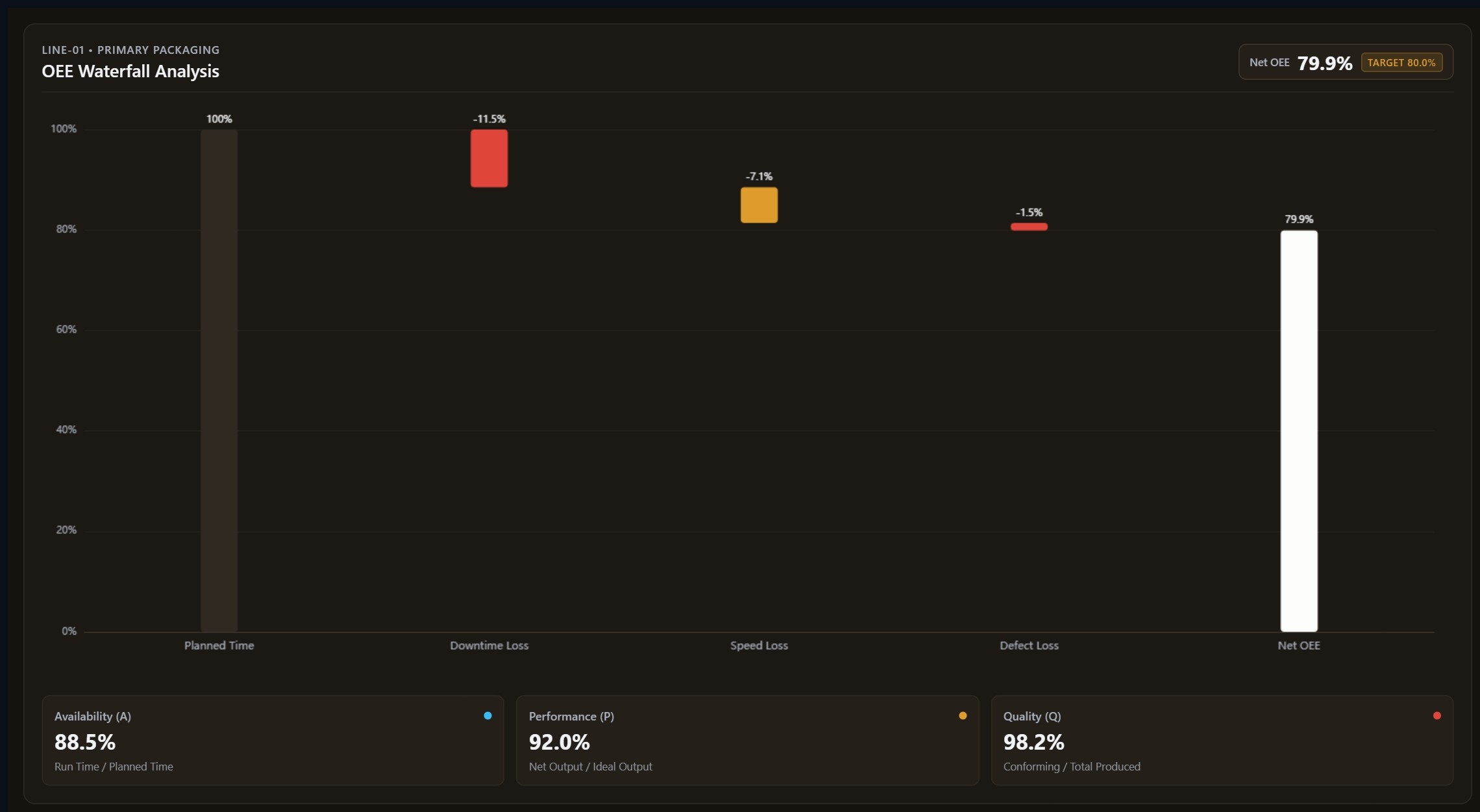

The OEE Waterfall Chart is a high-performance Custom Web Control designed to provide immediate clarity on production efficiency within modern SCADA environments. By visualizing the cascading losses across availability, performance, and quality, this control transforms raw percentages into an actionable waterfall breakdown. It allows operators to see exactly where productivity is lost, comparing the final Net OEE against a defined targetOee benchmark in a professional, industrial-grade interface.
Key Features
- Dynamic Factor Analysis: Real-time visualization of availability, performance, and quality factors with smooth transitions.
- Interactive Factor Cards: Three dedicated summary cards with custom labels and formulas that trigger the FactorCardClicked event for deep-dive diagnostics.
- Automated Threshold Monitoring: The TargetThresholdCrossed event fires automatically when production efficiency deviates from the set benchmark, enabling rapid response to performance drops.
- Atomic Data Updates: Utilize the setFactors method to update all OEE components simultaneously, ensuring data consistency across the visualization.
Customization
Engineers can fully tailor the visual identity of the control to match corporate standards using the backgroundColor property. The header is fully configurable via equipmentTag and panelTitle, while each factor card supports custom descriptive text through properties like availabilityLabel and performanceFormula. This level of detail ensures that operators understand not just the value, but the calculation logic behind the data.
Use Cases
This control is ideal for manufacturing execution system (MES) dashboards, line-side performance displays, and executive overview screens where tracking Overall Equipment Effectiveness against KPIs is critical for operational success.
Compatibility
Fully compatible with WinCC Unified (TIA Portal) and WinCC V8. The package includes comprehensive documentation for seamless integration into your existing HMI engineering workflow.
💡 TIA Portal Reminder: Remember to uncheck the "Read only" option in TIA Portal when linking a tag to a property that needs to be written from the Custom Web Control. If you do not, the CWC will only be able to read the HMI tags and not write to them.
