Custom Web Control

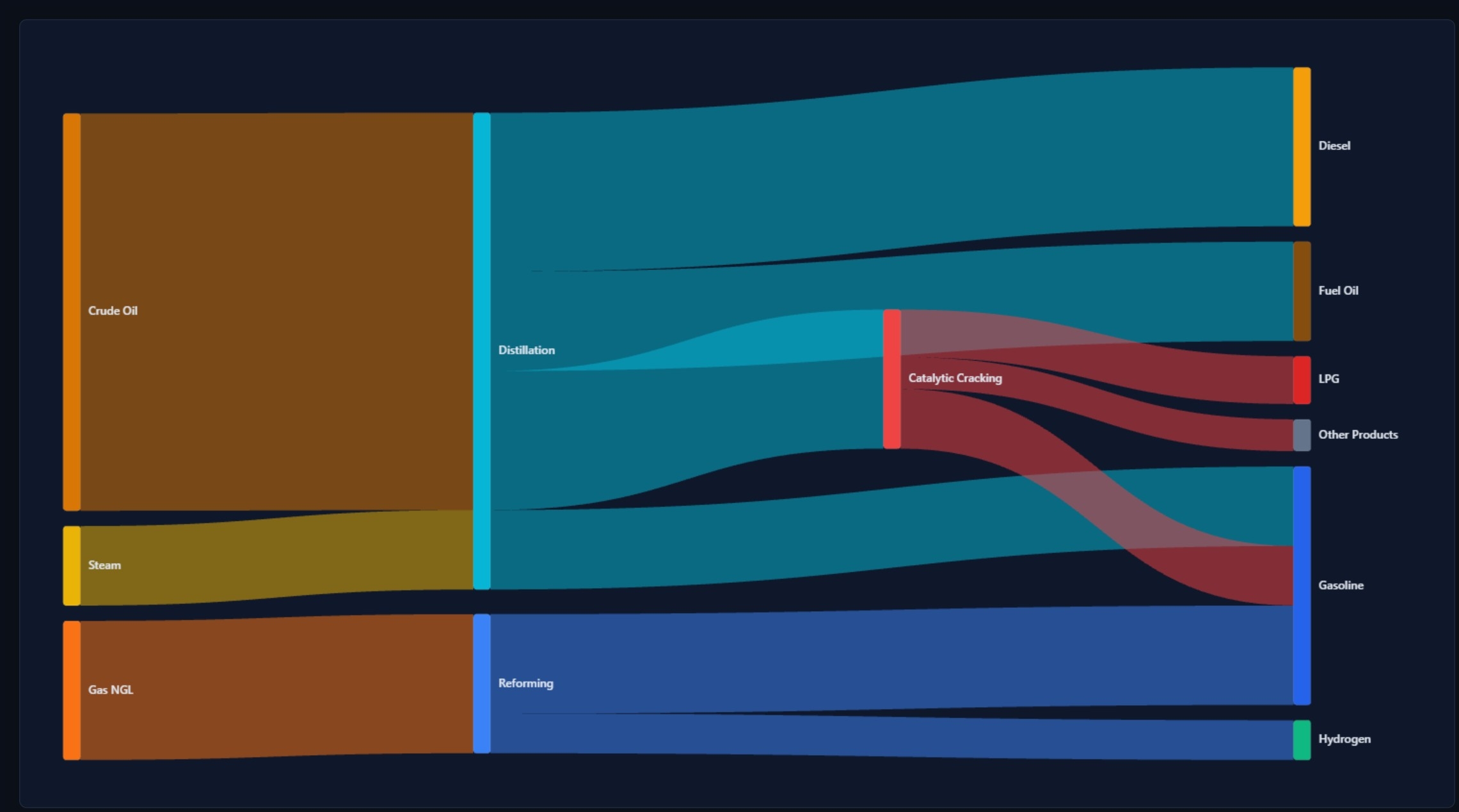

About Process Sankey Diagram
Process Sankey Diagram is a Custom Web Control built for industrial SCADA and HMI applications. Visualizes multi-stage refinery and process material flows with curved links and adjacency highlighting. Features interactive node dragging, throughput calculations, and dynamic tag binding for nodes and links. Simply import it into your WinCC Unified or WinCC V8 project and bind its properties to PLC tags — no web development required.
What You Can Configure
This control provides 9 configurable properties, 2 interactive events, and 2 callable methods. Operators can adjust colors to reflect operational states, structured data sets for dynamic content. All parameters are directly bindable to PLC tags for seamless real-time updates.
Compatibility
Works with WinCC Unified (TIA Portal) and WinCC V8. Includes full documentation (PDF & ODT) with installation instructions for both platforms.
💡 TIA Portal Reminder: Remember to uncheck the "Read only" option in TIA Portal when linking a tag to a property that needs to be written from the Custom Web Control. If you don't, the CWC will only be able to read the HMI tags and not write to them.
⚠️ AI-Generated: This control was automatically generated using AI. Please test and validate before deploying in production environments.
⚠️ AI-Generated: This custom web control was automatically generated using AI technology. It may contain errors or unexpected behavior. Users are responsible for testing and validating before using in production environments.
