Custom Web Control

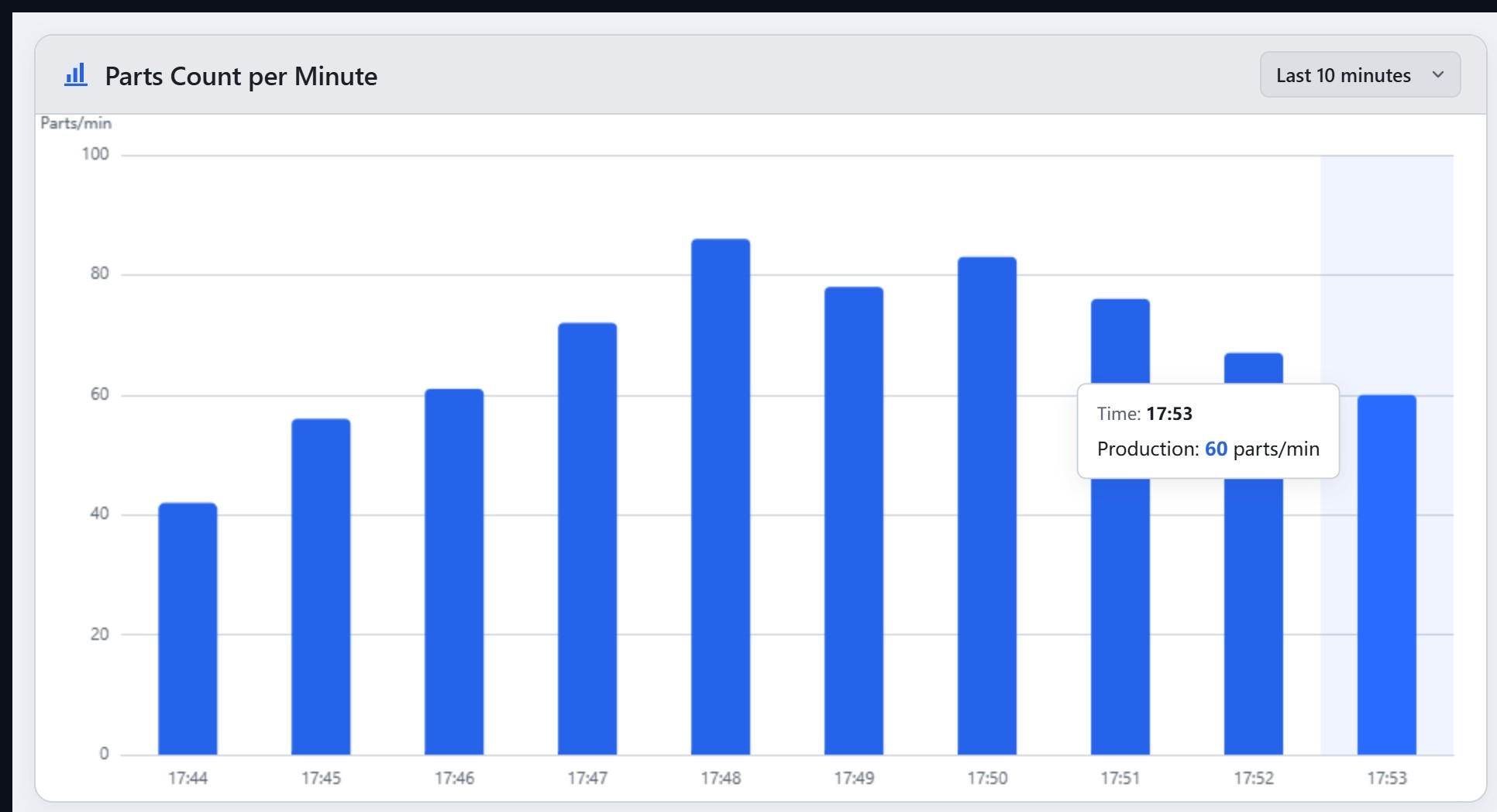

About Production Parts Per Minute Chart
The Production Parts Per Minute Chart is a high-performance Custom Web Control (CWC) engineered for modern industrial SCADA and HMI environments. It provides a dynamic, real-time visualization of manufacturing throughput using a responsive bar chart powered by an internal FIFO rolling buffer. Designed for seamless integration into WinCC Unified and WinCC V8, this control allows operators to track production trends over time with precision and clarity.
Key Features
- Rolling Buffer Visualization: Automatically manages historical data using the historyLength property to maintain a consistent performance profile.
- Interactive Timeframe Filtering: Features a built-in dropdown allowing operators to switch between 5 and 60-minute views, triggering the TimeframeChanged event.
- Event-Driven Architecture: Includes specific triggers such as SampleAdded for data logging and BarClicked for detailed drill-down analysis.
- Dynamic Scaling: The Y-axis automatically respects the maxYAxis limit, ensuring visual consistency across different production lines.
Customization
This control offers 9 configurable properties to match your corporate identity and process requirements. Engineers can define the chartTitle and yAxisLabel for clear instrumentation, while the barColor and backgroundColor properties ensure the chart fits perfectly within any industrial dark or light mode theme. Data is fed through the productionValue and timestamp properties, which are easily bound to PLC tags.
Use Cases
- OEE Monitoring: Track real-time performance ratios on packaging or assembly lines.
- Shift Analysis: Use the addProductionSample and clearHistory methods to manage data display during batch changes or shift handovers.
- Bottleneck Identification: Visualize production dips instantly to alert maintenance teams.
Compatibility
Fully compatible with WinCC Unified (TIA Portal) and WinCC V8. The control is optimized for web-based viewing on both stationary PC stations and mobile operator panels.
💡 TIA Portal Reminder: Ensure that any HMI tags bound to properties requiring two-way communication are not marked as "Read only" in the TIA Portal tag table to allow the control to function correctly.
⚠️ AI-Generated: This custom web control was automatically generated using AI. Please test and validate all functions in a staging environment before deploying to a live production line.
⚠️ AI-Generated: This custom web control was automatically generated using AI technology. It may contain errors or unexpected behavior. Users are responsible for testing and validating before using in production environments.
