Underground Water Reservoir | Dynamic SVG | WinCC Unified & V8

Dynamic SVG

About Underground Water Reservoir

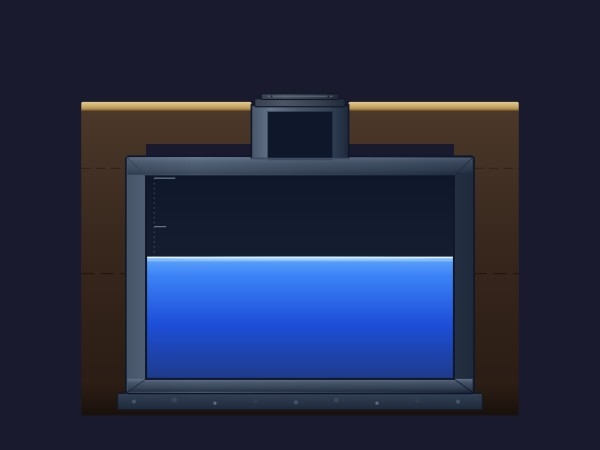

The Underground Water Reservoir is a high-fidelity Dynamic SVG designed for professional SCADA and HMI environments. It provides a detailed cross-sectional view of a subterranean storage vault, featuring realistic soil stratification and a reinforced concrete containment structure. This component allows operators to visualize liquid levels within buried assets, turning abstract data into an intuitive civil engineering schematic that is easy to interpret at a glance.

Key Features

• Dynamic Vertical Fill: The water column rises realistically from the tank floor to the ceiling, providing immediate visual feedback on storage capacity.
• Industrial Aesthetic: Features a multi-layered geological cross-section, an access manhole at the ground surface, and internal structural bevels for a modern, high-density dashboard look.
• Performance Optimized: Lightweight vector artwork ensures smooth rendering and rapid updates on industrial panels without taxing system resources.

Customization

The graphic is fully adaptable to your facility's standards through three primary properties. The FillLevel property drives the vertical height of the water column (0-100%). The WaterColor property allows for the adjustment of the liquid's hue to represent different fluid types, such as potable water or treated effluent. Finally, the BasicColor property manages the structural appearance of the concrete vault and surrounding elements to match your project's dark or light theme.

Use Cases

This visualization is ideal for municipal water treatment plants, industrial fire protection systems, subterranean rainwater harvesting monitoring, and large-scale agricultural irrigation reservoirs where buried assets require constant level supervision.

Compatibility

Fully compatible with WinCC Unified and WinCC V8. The component supports standard SVGHMI binding, allowing for direct connection to PLC tags for seamless real-time monitoring.

⚠️ AI-Generated: This dynamic svg was automatically generated using AI. Please test and validate before deploying in production environments.

⚠️ AI-Generated: This dynamic svg was automatically generated using AI technology. It may contain errors or unexpected behavior. Users are responsible for testing and validating before using in production environments.

## Current version: v1 (2026-10-05)
